Lister CS Fuel Tank Kit C/W Mounting Bracket
SKU: 008-03037-NG

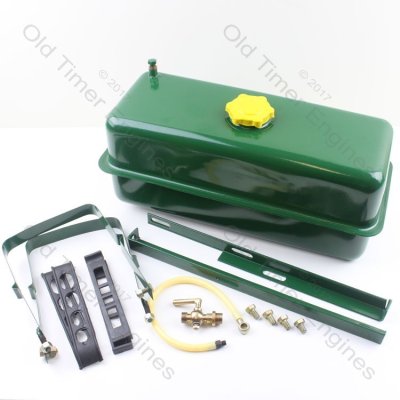

A newly made aftermarket 8 litre steel fuel tank to suit all single cylinder Lister CS engines, the kit comes complete with mounting bracket and fuel lines to fit genuine Lister CS engines.

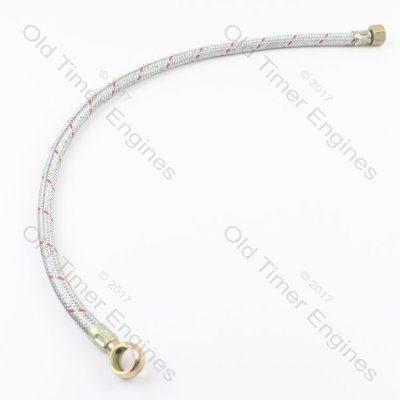

This kit includes the steel fuel tank, mounting brackets, bolts, straps, steel injector leak off pipe, 3/8 BSP brass fuel tap and a braided fuel line suitable for fitting to original Lister CS cast iron wick filters.
Dimensions (approximate):
- 450mm long
- 190mm wide
- 190mm high
- Holds approximately 8 Litres
The tank kit is the equivalent replacement for the following Lister part numbers:
- Fuel Tank: 008-03037 & 8-30-37
- Fuel Tank Valve: 010-07050 & 10-7-50
- Fuel Tank Bracket R.H.: 008-07223 & 8-7-223
- Fuel Tank Bracket L.H.: 008-07224 & 8-7-223
- Fuel Tank Bearers: 008-03044 & 8-30-44
- Fuel Tank Cap: 027-03824 & 27-3824
- Fuel Pipe: 008-07229 & 8-7-229
- Fuel Leak-off Pipe: 008-07230 & 8-7-230
Note: The fuel pipe for the bottom of the tank supplied will only fit to original Lister CS cast iron wick filters with the 18mm banjo fitting, you will need to adapt end fitting for other filter types as required.
